Cleaning Coil Brush Inward/Outward Spiral Brush
A: brush outer diameter (OD)
B: brush inner diameter (ID)
C: brush bristles
D -X*Y, channel material and size
See the specification of X*Y
| Brush OD | Customized |
| Brush ID | Customized |
| Brush bristles | Customized |
| Channel size X | 2.5mm - 10mm |
| Channel size Y | 2.5mm - 10mm |
| Brush length L | Customized |
Features:

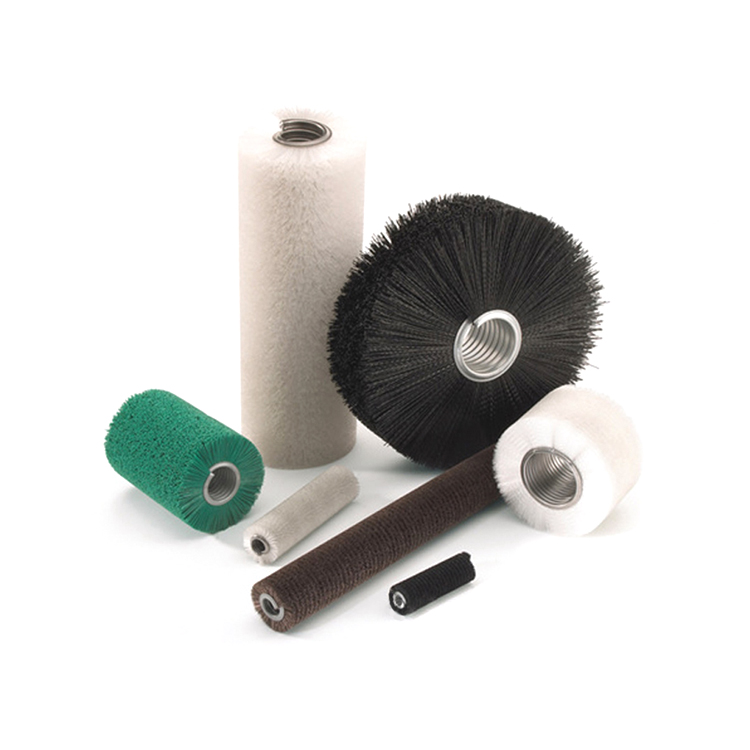

This type of brush can be supplied as a complete assembly pre-mounted on a core with journals, wound directly on to a shaft, wound on a customer's core or shaft, or as replacement coils for in-house installation. Typical applications include conveyor cleaning, panel dusting, glass washing, screen cleaning, material handling (as screws and augers), lint removal and fruit and vegetable washing. Carolina Brush is capable of designing and manufacturing any custom coil brush to meet our customers' application.
Applications:
1. Conveyor cleaning
2.Panel dusting
3.Glass washing
4.Screen cleaning
5. Material handling (as screws and augers)
6. Lint removal and fruit and vegetable washing
...
Please do us a favor to confirm the data
A: brush outer diameter (OD)
B: brush inner diameter (ID)
C: brush bristles
D -X*Y, channel material and size
See the specification of X*Y
| Brush OD | Customized |
| Brush ID | Customized |
| Brush bristles | Customized |
| Channel size X | 2.5mm - 10mm |
| Channel size Y | 2.5mm - 10mm |
| Brush length L | Customized |
Channel material-our common use galvanized iron,201SS,304SS, pls choose one. Wire material-our common use is plastic bristle, antistatic bristle, metal wire, horsehair, sisal, pls choose one.
For the plastic bristle, we also need to know the bristle color and bristle diameter. See the details of plastic bristle
For the metal wire, we just need to know the wire diameter, wire material. For the wire material, our common use is steel wire,201SS wire,304SS wire, brass wire, copper coated steel wire, pls choose one.
