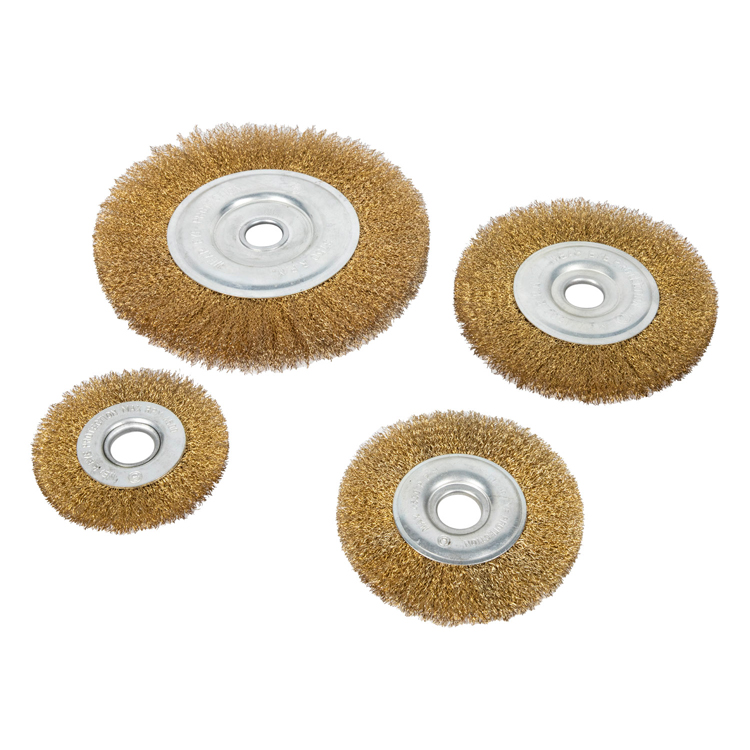

Copper Coated Curved Wire Wheel Brush For Industrial Polishing and Cleaning

BD	BW	KB	Wire Usable length	Max RPM
75	11	12.7	17	20000
100	11	16	22	11000
115	11	22.2	22	11000
125	11	22.2	28	11000
150	13	22.2	34	9000
175	13	22.2	42	9000
200	13	22.2	42	6000
250	8/14/18	50	50	4500
300	8/14/18	57	55	3600
350	8/14/18	81	65	3600
400	8/14/18	83	150	3600

Wire wheel brush

Product Features:

1.Idea making for weld cleaning, heavy flash removal, and rough surface preparation. Fabricated of high quality, high fatigue straight tempered wire for heavy and severe cleaning etc.

2. Used for removing rust/ paint, stainless steel polishing, deburring.

3. High efficiency and cost-effective.

4.Highly specified wire grades are constructed with internal holding plate to ensure consistency and safety.

BD	BW	KB	Wire Usable length	Max RPM
75	11	12.7	17	20000
100	11	16	22	11000
115	11	22.2	22	11000
125	11	22.2	28	11000
150	13	22.2	34	9000
175	13	22.2	42	9000
200	13	22.2	42	6000
250	8/14/18	50	50	4500
300	8/14/18	57	55	3600
350	8/14/18	81	65	3600
400	8/14/18	83	150	3600

Applying of industrial brushes:

Industrial brushes used in the surface- treatment of metal, mainly aspects as below:
(1) Rough machining of surface(polish, pull rough, rust clearance)
(2) Clear of surface (dirt reduce, oil relieve)
(3) Finishing of surface(Mill, gloss marking ,polish)
Selection for applying of industrial brushes
First of all, the choice of industrial brushes would be according with the performance of the material which will be done, e.g: smooth finish and hardness of material, etc…selecting suitable steel wire of brushes; choosing correct shape of brushes according to the different condition; to calculate the specification and rounds of the brushes basis on technological process Normally, same diameter of the wire, the more short ,the mill force is more strong, the more long, the more less, and diameter of whole brushes(around one) more bigger, and result is much better..
The solution of using brushes if the effective is not very satisfied.

If the effective of using of brushes is too weak
--Choosing a bigger diameter on or rising the speed of brushes(no more than Max. speed)
--Reducing the length of wire
--Selected a bigger wire brushes
If the effective of using of brushes is too strong
--Choosing a smaller diameter on or reduce the speed of brushes
--To longer the length of wire
--Selected a smaller wire brushes
Surface is to rough
--Choosing a bigger diameter on or rising the speed of brushes(no more than Max. speed)
--Reducing the length of wire
--Selected a bigger wire brushes
Surface is to gloss
--Choosing a smaller diameter on or reduce the speed of brushes.
--To longer the length of wire
--Selected a smaller wire brushes
